Marlon Aluminium Boats Models
|

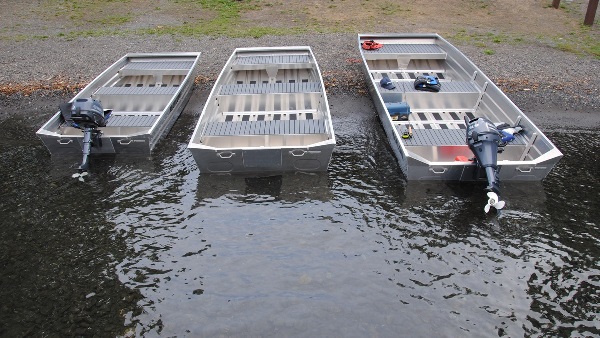

Jon Boat
|

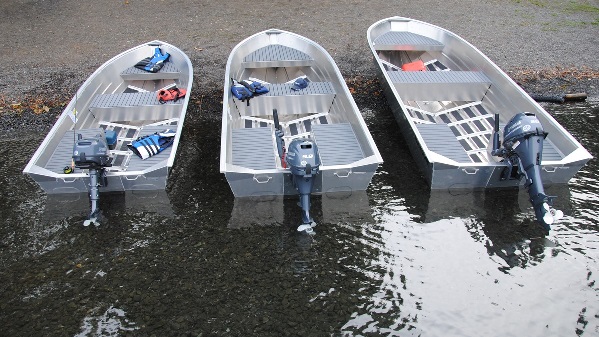

Welded Utility
|
 |
 |
| Marlon Jon boats are noted for their width and stability in even rougher waters. |
| |
| It is perfect, lightweight flat bottom boat for those wanting stability, portability, space, and extra carrying capacity. |
| |
| Marlon SP boats all come with high density EVA seat pads, black non skid flooring with Marlon decals. |
|
|
| Marlon Utilities are built with exceptional performance and lasting dependability in mind. |
| |
| Our utilities are all welded hulls, heavy duty extruded center keel with four formed in bottom strakes for extra strength. |
| |
| Includes rearranged rear side seats for extra seating and stability, all seats covered in high density EVA for comfort. |
| |
| Marlon Utilities have wide beams for added room, wide bottoms for better stability and deep so you feel safe with the kids or bringing in the big one! |
|
SPECIFICATIONS
|
SP10
|
SP12
|
SP14
|
| Length: |
9.84' |
12.14' |
14.27' |
| Beam: |
59" |
59" |
63" |
| Height of Sides: |
16.92" |
16.92" |
18" |
| Bottom Width: |
51" |
51" |
55" |
| Approx Dry Weight: |
105 lbs |
132 lbs |
198 lbs |
| Maximum HP: |
5HP |
10HP |
20HP |
| Transom Height: |
15" |
15" |
15" |
| Transom Gauge: |
.079" |
.079" |
.118" |
| Hull Gauge: |
.047" |
.047" |
.079" |
| Max Person Capacity: |
3 |
4 |
4 |
| Max Gross Load: |
461 lbs US
549 lbs Canada |
822 lbs US
881 lbs Canada |
935 lbs US
1,322 lbs Canada |
|
|
SPECIFICATIONS
|
SWV 12S
|
SWV 14S/14L
|
SWV 16L
|
| Length: |
12' |
14' |
16' |
| Beam: |
59" |
63" |
71" |
| Bow Height: |
25" |
27" |
27" |
| Bottom Width: |
47" |
52" |
57" |
| Approx Dry Weight: |
204 lbs |
255 lbs |
320 lbs |
| Maximum HP: |
10HP |
20HP |
30HP |
| Hull Gage: |
0.079" |
0.079" |
0.079 |
| Transom Height: |
15" |
15"/20" |
20" |
| Transom Gauge: |
.118" |
.118" |
.118" |
| Max Person Capacity: |
2 |
3 |
5 |
| Max Gross Load: |
443 lbs US
639 lbs Canada |
562 lbs US
821 lbs Canada |
1,082 lbs US
1,151 lbs Canada |
|
FEATURES
- Three Bench Seats
- Four Carrying Handles
- Welded Hull Seams
- Drain plug
- High density EVA seat pads
- Black non skid floor
|
|
FEATURES
- All welded hull.
- New rear side seat design has increased flotation and comfort.
- High density foam EVA seat covers.
- Heavy duty transom and transom support like no other!
- Traction grip on floor.
- Gunnel extrusion with rubber insert for looks and protection.
- Welded Heavy duty bow cleat for securing your boat to your trailer or dock.
- Standard with two carrying handles on the bow and two on the transom for easy carrying.
- Roomy usable bow seat.
- Wide beams and wide chine width which results in better stability.
- Faster on the plane and requires less HP to get on the plane!
|
